Signature Series
Standard Features - 20'-24'
- All Welded Aluminum Hull
.190 Marine Grade Aluminum Bottom
.190 Marine Grade Aluminum Transom
.125 Marine Grade Aluminum Sides
- Four piece hull, Delta V bottom
- 34" side height
- 72" bottom width
- Walkaround engine compartment
- Welded walkthrough windshield
- Five window package
- 350 H.O. Vortec/marinized engine w/heat exchanger
- American turbine jet drive
- 57 to 80 gal fuel system
- Custom instrument panel. Tachometer, Voltmeter, Fuel, Hourmeter,
- lighter, oil pressure gauge, temperature gauge, w/audio/visual alarm
- system
- Heavy duty bilge pump Fuel water separator
- Heavy duty blower
- Water strainer
- Four stainless cleats
- Driver windshield wiper
- Running lights
- Horn
- Heavy duty steering system
- Heavy duty marine battery
- Deluxe captains seats w/33"-53" sleeper benches
- Two ski hooks
- Dual mufflers
- Custom striping w/logo
- Two transducer brackets
- 1/3 paint
- 20' Signature - 350 H.O. carb
- 21' Signature - 350 H.O. carb
- 22' Signature - 454 L-29 PFI
- 23' Signature - 454 L-29 PFI
- 24' Signature - 454 L-29 PFI
Optional Hull Features
- 6' 1/2" Bottom
- 1/4" Bottom
- Recessed Bow
- Swim Platform 1/2, 3/4, Full
- Rear Railing Low, Mid, High
- Pole Holders
- Bow Rails
- Half Step
- High Deck
- High Deck Storage Boxes
- High Deck Lockable Storage
- Low Deck Lockable Rod Storage
- Slider Windows
- Upper Storage Trays
- Lower Storage Trays
- Upper Cabinets
- Bow Anchor Storage
- Bow Chock & Cleat
- Diamond Plate Entrances
Engine Options
- 20-21' Boats
- 350 Vortec
- 30 Hp Carb
- Upgrade to 454 PF1 (L29)
- 22'-24' Boats
- 454 Vortec PFI (L-29) Upgrade to 502 PFI
Jet Drive Options
- American Turbine (STD)
- Kodiak 3 Stage Pozzi Nozzle
- Hamilton 212 Turbo
|
Top Options
- Fixed frame w/curtains
- Removable Rigid w/curtains
- Folding w/curtains
- 3/4 Hard Top w/back drop
- 20'-24' Full hard top w/drop
- Stern Cover
- Camper Cover
- Mooring Cover
- Towing Bra
Additional Accessories
- Trolling motor bracket (weld on)
- OMC/Heavy Duty
- AM/FM cassette Stereo w/2 speakers
- AM/FM CD stereo w/4 speakers
- Locking Glove Box
- Dual Batteries (1) Deep Cycle
- Bow Carpet
- High Output Heater w/Defrost
- Paint 2/3, 2 color Full
- Suspension Seats
- Side Seats (pair)
- Fish on seats
- Engine Cover Pad
- Side Step Boxes
- Full Step Boxes
- Snap in Carpet
- Quick Disconnect Fuel
- Dome Light
- Live Well Box
- Wash Down Pump
- Foam: Bow, Full
- Passenger Wiper
- Tilt Wheel
- 32 Gal. Saddle Tank
- Bow Livewell

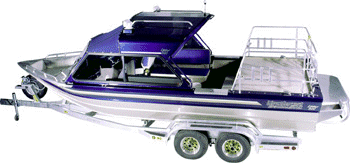

Tricker Trailer
Proudly, all Northwest Jet Boats are equipped with Tricker Trailers. All
are welded, galvanized, heavy duty trailers. Tandem axle, dual brakes,
chine guides, radial tires, spare tire mount, tongue Jack & winch step.
Specifications
| Length | 20' | 21' | 22' | 23' | 24' |
|---|
| Bottom Width | 72" | 72" | 72" | 72" | 72" |
| Beam Width | 8' | 8' | 8' | 8' | 8' |
| Side Height | 34" | 34" | 34" | 34" | 34" |
| Bottom Gauge | .190 | .190 | .190. | .190 | .190 |
| Side Gauge | .125 | .125 | .125 | .125 | .125 |
| Transon Gauge | .190 | .190 | .190 | .190 | .190 |
| Bead Roll | 2 | 2 | 2 | 2 | 2 |
| Gas Tank | 57 | 70 | 80 | 80 | 80 |
| Hull Weight (aprox) | 3170# | 3410# | 3650# | 3900# | 4100# |
| Trailer Weight (aprox) | 1370# | 1370# | 1500# | 1500# | 1700# |
| Combined Weight (aprox) | 4540# | 4780# | 5150# | 5400# | 5800# |
| Trailer Length w/boat (aprox) | 25'6" | 25'6" | 26'6" | 26'6" | 27' |
| Height on Trailer (aprox) | 9' | 9' | 9' | 9' | 9' |
|
